libsbgnpy: python library for SBGN¶

libsbgnpy is a python library to work with the Systems Biology Graphical Notation (SBGN). The source code is available from https://github.com/matthiaskoenig/libsbgnpy.

Background¶

A pathway drawn by hand is a picture: a human sees what it means, a machine sees pixels. SBGN fixes this by defining what every shape in a biological map means (Le Novère et al. 2009). A rounded rectangle is a macromolecule, a circle is a simple chemical, a square with two ports is a process, an arrow with a filled head is production. Three languages cover what is usually drawn:

Process Description (PD) — what is converted into what, e.g., a metabolic or a signalling network,
Entity Relationship (ER) — which entity influences which other entity, without ordering the events,
Activity Flow (AF) — the flow of activity between the entities, the level of a cartoon in a review.

SBGN-ML is the exchange format of such a map (van Iersel et al. 2012): an XML document which stores the glyphs, the arcs between them, and the coordinates they are drawn at, so a map travels between the tools that draw it. libsbgnpy reads, writes, validates and renders these documents from python.

Features¶

SBGN maps — the complete SBGN-ML schema as python classes, generated with xsdata: maps, glyphs, arcs, ports and bounding boxes, with the classes of the three languages as enums.
Reading and writing — read and write SBGN-ML documents from files or strings; SBGN-ML 0.1 and 0.2 documents are upconverted while reading.
Notes and extensions — the arbitrary XML which SBGN elements carry, written and read back as XML.
Render information — colors, gradients and styles of a map, stored as an extension.
Validation — validation of a document against the SBGN XSD schema.
Images — rendering of a map as a PNG through a web service.

Quickstart¶

Read an SBGN document and walk over its content:

from pathlib import Path

from libsbgnpy import read_sbgn_from_file

sbgn = read_sbgn_from_file(Path("examples/sbgn/adh.sbgn"))
map = sbgn.map[0]

print(map.language)
# MapLanguage.PROCESS_DESCRIPTION

for glyph in map.glyph:
    print(glyph.id, glyph.class_value, glyph.label.text if glyph.label else None)
    # glyph1 GlyphClass.SIMPLE_CHEMICAL Ethanol

Create a map from scratch, write it and render it:

from pathlib import Path

from libsbgnpy import (
    Bbox,
    Glyph,
    GlyphClass,
    Label,
    Map,
    MapLanguage,
    Sbgn,
    render_sbgn,
    write_sbgn_to_file,
)

map = Map(
    id="ethanol",
    language=MapLanguage.PROCESS_DESCRIPTION,
    bbox=Bbox(x=0, y=0, w=363, h=253),
)
map.glyph.append(
    Glyph(
        id="ethanol",
        class_value=GlyphClass.SIMPLE_CHEMICAL,
        label=Label(text="Ethanol"),
        bbox=Bbox(x=40, y=120, w=60, h=60),
    )
)
sbgn = Sbgn(map=[map])

write_sbgn_to_file(sbgn, Path("ethanol.sbgn"))
render_sbgn(sbgn, Path("ethanol.png"))

The complete example, which builds the alcohol dehydrogenase reaction step by step, is examples/ethanol.py:

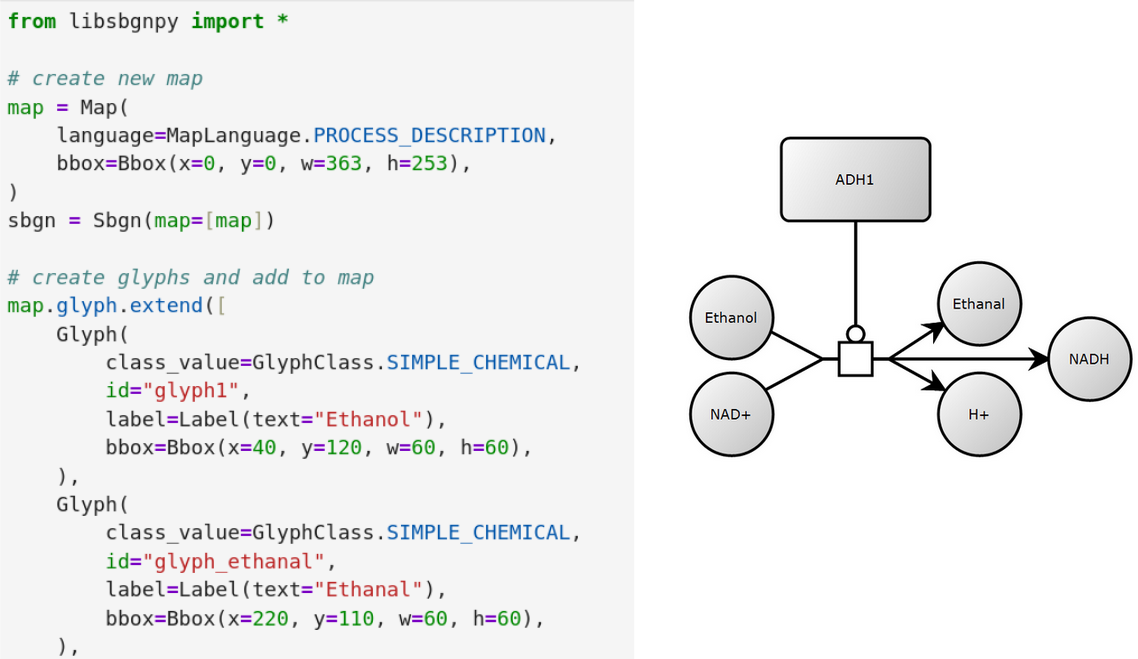

ethanol example

If you have any questions or issues please open an issue.

For agents¶

The documentation is published as markdown as well, following the llms.txt convention:

llms.txt — an annotated index of every page
llms-full.txt — the complete documentation in a single file
the markdown of every page next to its html, i.e., io.md for io

How to cite¶

If you use libsbgnpy please cite the archived software on Zenodo. 10.5281/zenodo.597155 is the concept DOI, which always resolves to the latest version; the DOI below is the one of this release:

König, M. (2026). libsbgnpy: python library for SBGN (Version 0.6.1) [Computer software]. Zenodo. https://doi.org/10.5281/zenodo.22642321

@software{konig_libsbgnpy,
  author    = {König, Matthias},
  title     = {libsbgnpy: python library for SBGN},
  year      = {2026},
  month     = {9},
  version   = {0.6.1},
  publisher = {Zenodo},
  doi       = {10.5281/zenodo.22642321},
  url       = {https://doi.org/10.5281/zenodo.22642321},
}
