pkpdutils: pharmacokinetic and pharmacodynamic analysis

GitHub Actions CI/CD Status Documentation Version Python Versions MIT License DOI

pkpdutils is a python library for the pharmacokinetic (PK) and pharmacodynamic (PD) analysis of timecourses and parameters. The source code is available from https://github.com/matthiaskoenig/pkpdutils. The package was formerly published as pkdb-analysis, the analysis toolbox of PK-DB; version 1.0.0 is a rewrite without any PK-DB dependency.

Background

A pharmacokinetic study measures the concentration of a substance over time; the parameters which describe such a curve, the exposure AUC, the peak Cmax, the half-life, the clearance and the volume of distribution, are what studies report, compare and pool. pkpdutils computes these parameters from timecourses without a model of the body (non-compartmental analysis), fits the curves and the parameters which need a model of the curve (exponentials, Emax, dose proportionality, covariates), propagates the uncertainty of group data, and provides the statistics used on the parameters: significance tests, bioequivalence, the classification of drug-drug interactions and meta-analysis.

All data structures are xarray datasets with pint units, so many timecourses, e.g. all individuals of a study or all runs of a simulation scan, are analysed in one vectorized call.

Features

  • Timecourses - Timecourse for one curve, Timecourses for many, with dosing protocols, routes, uncertainties and metadata.
  • Data formats - read the event records of NONMEM and Monolix, the two tables of PKNCA and the CDISC ADaM ADNCA dataset, and write event records back.
  • Non-compartmental analysis - exposure, peak, terminal phase, clearance and volume parameters of concentration curves, single dose and multiple dosing (every dosing interval, steady state, accumulation), vectorized over a batch, with flags and units.
  • Uncertainty - bootstrap and delta method for group timecourses, summaries over individuals, partial areas.
  • Curve fitting - exponential, Bateman, Emax, power and covariate models with standard errors, confidence intervals, bootstrap, model comparison and dose proportionality.
  • Pharmacodynamics - effect timecourses in the NCA and concentration-effect relationships with the Emax family.
  • Statistics - significance tests, geometric mean ratios, bioequivalence, drug-drug interaction classification and meta-analysis on the parameters of groups and studies.
  • Bioequivalence - the average bioequivalence of two formulations, crossover and parallel designs, the ratio table and figure of the report.
  • Drug-drug interactions - exposure ratios with and without a perpetrator, the FDA and EMA classes, substrate sensitivity, the class figure.
  • Plotting - timecourses, NCA diagnostics and fits as matplotlib figures, parameter distributions, ratio and forest plots.
  • Units - every timecourse and result carries its units, parameters are derived in the units of the input.

The methods behind the package are cited in References.

Quickstart

A study of twelve subjects in three dose groups, from the event table it arrives in to the parameter table and the figure of the report. The table is study.csv, which the first walk-through of Workflows builds:

import pandas as pd

from pkpdutils import Route, Timecourses, nca, summary_table
from pkpdutils.console import print_table
from pkpdutils.plot import plot_mean_timecourse

# [study.csv](data/study.csv): ID, TIME, DV, AMT, EVID and the dose group
events = pd.read_csv("study.csv")
batch = Timecourses.from_events(
    events,
    time_unit="hr",
    unit="mg/l",
    dose_unit="mg",
    route=Route.ORAL,
    covariates=["dose"],
)
result = nca(batch)
table = summary_table(
    result,
    "individual",
    by="dose",
    parameters=["auc_inf_obs", "cmax", "thalf", "cl_f"],
    stats=("n", "geomean", "geocv", "median", "range"),
    unit_style="short",
)
print_table(table, title="Pharmacokinetic parameters by dose group")
plot_mean_timecourse(batch, by="dose").savefig("study_curves.png", dpi=120)

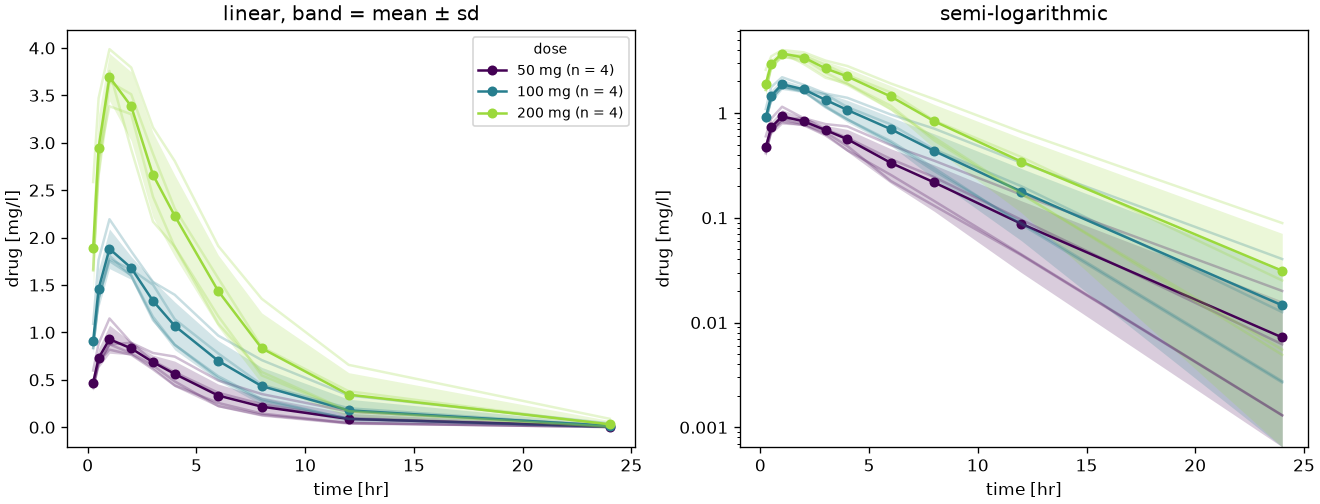

The mean curve of every dose group with its standard deviation, linear and semi-logarithmic

The table the snippet prints, the geometric mean with its coefficient of variation per dose group:

Pharmacokinetic parameters by dose group

  parameter     unit     dose   n   geomean   geocv    median   range
 ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
  auc_inf_obs   h⋅mg/l     50   4   5.07      28.0 %   4.76     4.08 - 7.29
  cmax          mg/l       50   4   0.925     14.9 %   0.883    0.818 - 1.15
  thalf         h          50   4   2.86      23.5 %   2.72     2.37 - 3.89
  cl_f          l/h        50   4   9.86      28.0 %   10.7     6.86 - 12.3
  auc_inf_obs   h⋅mg/l    100   4   10.2      27.1 %   9.58     8.22 - 14.4
  cmax          mg/l      100   4   1.87      10.6 %   1.79     1.75 - 2.19
  thalf         h         100   4   2.87      24.2 %   2.73     2.35 - 3.91
  cl_f          l/h       100   4   9.84      27.1 %   10.6     6.94 - 12.2
  auc_inf_obs   h⋅mg/l    200   4   20.4      26.0 %   19.3     16.6 - 28.6
  cmax          mg/l      200   4   3.69      6.82 %   3.70     3.38 - 3.99
  thalf         h         200   4   2.89      25.9 %   2.75     2.33 - 4.05
  cl_f          l/h       200   4   9.79      26.0 %   10.5     6.98 - 12.0

The same steps with the table built in place, the parameters printed and four more walk-throughs (bioequivalence, drug-drug interaction, steady state, dose proportionality) are in Workflows. Continue with Installation, Timecourses and Non-compartmental analysis, or browse the Gallery, a figure and a snippet for every example of the repository.

How to cite

DOI

If you use pkpdutils please cite the archived software on Zenodo:

König, M. (2026). pkpdutils: pharmacokinetic and pharmacodynamic analysis of timecourses and parameters (Version 1.2.0) [Computer software]. Zenodo. https://doi.org/10.5281/zenodo.22808373
