Curve fitting¶

Non-compartmental analysis reads parameters from the observed points; some questions need a curve through them: the rate constants of the phases of a decline, the absorption rate of an oral curve, the concentration of half-maximal effect, whether the exposure grows in proportion to the dose, how a clearance scales with body weight. pkpdutils.fit fits small parametric models to one curve or to every curve of a batch with the same engine, reports standard errors, confidence intervals and goodness of fit, compares models and applies the dose proportionality criterion. The models are descriptive: the coefficients carry no compartmental interpretation, and population (mixed effects) modelling is outside the scope of the package.

Concepts¶

Model. A Model is a function \(y = f(x; p)\) with named parameters, bounds and an initial guess from the data. Every parameter states whether it is positive; positive parameters are searched on the logarithmic scale, which keeps them positive and makes the search insensitive to their magnitude (FitOptions.parameter_scale, log10 by default). Bounds, start values and every reported number stay on the linear scale. The model library has three families: exponentials for concentration timecourses (MonoExp, BiExp, TriExp, Bateman with an optional lag time), the Emax family for concentration-effect data (Emax, SigmoidEmax, Imax, SigmoidImax), and Linear, LogLinear, Power and Allometric for a parameter against a dose or a covariate. The initial guesses are analytical: a log-linear regression of the terminal points, curve stripping for a sum of exponentials, the half-way crossing for an ec50, a log-log regression for a power model.

Weighting. Concentrations span orders of magnitude and their error grows with their size, so an unweighted fit is dominated by the high points. Weighting names the variance model of the residuals: constant (NONE, the default), proportional to \(\lvert y \rvert\) (INV_Y), proportional to \(y^2\) (constant CV, INV_Y2) or the reported standard deviations (INV_SD). Residuals are divided by the standard deviation of that model before the sum of squares. The two \(y\) based models use the absolute value, so a negative value (an effect) weighs like its positive counterpart, and a point whose value is zero or not finite would have no variance at all: it is given the smallest \(\lvert y \rvert\) of the row instead (1 when the row has no non-zero value), which keeps the weight of such a point finite and large without dividing by zero. Under INV_SD a point without a finite positive standard deviation carries no weight and is dropped from the fit, so n_points can be smaller than the number of observed points.

Uncertainty of the parameters. The standard errors come from the Jacobian of the residuals at the optimum, a first order (Wald) approximation ¹. They are computed in the search space and transformed with \(|dp/dq|\), and the confidence intervals use the t distribution with \(n - k\) degrees of freedom on the search scale and are transformed back, so the interval of a parameter fitted on the log scale is asymmetric around the estimate. Derived parameters (half-lives, areas, \(\mathrm{EC}_{90}\), \(t_\mathrm{max}\)) get their uncertainty from the delta method with a numerical gradient; their interval is \(d \pm t\,\mathrm{se}(d)\) and therefore always symmetric, even for a strongly non-linear function of the parameters such as a half-life. The covariance is the least-squares covariance and is exact only for loss="linear"; under a robust loss (soft_l1, huber, cauchy, arctan) it is an approximation.

Residual bootstrap. FitOptions(bootstrap=B) replaces the Jacobian uncertainties by the empirical ones of \(B\) refits ³: the weighted residuals of the fit are centered and inflated so that their variance matches the residual variance of the fit, resampled with replacement, added back to the fitted curve, and the model is refitted from the fitted parameters. The standard errors are the standard deviations of the replicates, the intervals their percentiles at ci_level and the correlation matrix is theirs as well; no local linear approximation is involved, and the intervals of the derived parameters are free to be asymmetric. A replicate whose refit does not converge is skipped, so n_bootstrap, the number of converged replicates, is the honest sample size and a value far below the requested attrs["bootstrap"] signals an unstable fit. Fewer than two converged replicates cannot estimate anything: the Jacobian uncertainties are reported instead and FitFlag.BOOTSTRAP_FALLBACK is set.

Multi-start. Nonlinear least squares finds a local optimum. FitOptions(n_starts=m) starts from the initial guess and \(m - 1\) Latin hypercube points of a box around it (start_spread) and keeps the best solution, a converged one before a non-converged one and the smaller cost among equals; n_starts_converged says how many of them converged. n_workers spreads the rows of a batch over a process pool (never the starts of a single row): a row is a python-heavy least_squares search, so the workers are processes, unlike the threads of the NCA. The default n_workers=None decides by size, the calling process up to 2 000 rows and one worker per core, at most 8, above it; n_workers=1 forces the serial run and n_workers=n uses that many workers. The threshold is high because the workers of a process pool import pkpdutils and its dependencies when the pool starts, about a second, which only a large batch earns back on its own; a smaller batch of expensive rows - several starts, a residual bootstrap, a sum of exponentials - is worth an explicit n_workers. The pool is created once per process and shared with every later fit, so only the first pooled call pays the start-up of the workers; the workers start with forkserver (spawn on macOS and Windows) on every python version and import the main module afresh, so a pooled call needs an if __name__ == "__main__": guard, like every other use of multiprocessing, and a model which can be imported, not one defined in an interactive session.

Model comparison. compare_models fits every model to the same data and ranks them per sample by the corrected Akaike information criterion; the Akaike weight is the probability that a model is the best of the candidate set ². AICc penalizes parameters, so a bi-exponential only wins over a mono-exponential when the second phase is supported by the data, and with few points the penalty can also favour a fixed exponent over a free one. The information criteria count the residual variance as an estimated parameter, \(K = k + 1\) ²; the reported n_parameters stays \(k\), the free parameters of the model.

Dose proportionality. With \(\mathrm{AUC} = a D^b\) the exposure is proportional to the dose when \(b = 1\). proportionality_test applies the confidence interval criterion of Smith et al. ⁴: over a dose range \(r = D_\mathrm{high} / D_\mathrm{low}\) the fit is proportional when the interval of \(b\) lies within \(1 + \ln(\theta) / \ln(r)\) for the acceptance limits \(\theta = 0.8\) and \(1.25\), inconclusive when it overlaps the bounds without lying inside, and not proportional otherwise.

Phases of a sum of exponentials. After a fit the phases of BiExp and TriExp are ordered by decreasing rate constant, \(k_1 > k_2 > k_3\), so that k1 always names the fast phase; the labelling is kept as the user wrote it when FitOptions.fixed or FitOptions.bounds names one of the phase parameters. lambda_z is the smallest rate constant either way, the terminal phase of the curve.

Flags. NOT_CONVERGED (1, no start converged), AT_BOUND (2, a parameter rests on a finite bound, measured relative to the bound and to the start value), TOO_FEW_POINTS (4, fewer points than parameters + 1), FLIP_FLOP (8, a Bateman fit with \(k_a < k_e\), where the terminal phase reflects absorption), SINGULAR (16, the Jacobian gives no usable covariance, so no standard errors), NO_DATA (32, fewer than two finite points), BOOTSTRAP_FALLBACK (64, see above), OVERFLOW (128, a quantity of the fit is beyond the range of double precision, see below).

Data beyond double precision. The square of a value beyond about \(10^{154}\) overflows, so an unweighted fit of values that large has no finite sum of squares. Such a row is guarded rather than computed: no floating-point warning of it escapes, which under a strict warning filter would abort the whole batch, and a start, a covariance or a goodness of fit statistic which is not finite is NaN and flagged OVERFLOW (a row without any usable start is NOT_CONVERGED as well, every parameter NaN). The other rows of the batch are not affected. Weighting with INV_Y2 often brings such data into range.

Units. The parameters are reported in the raw units of the data: k in 1/[x], a in [y], auc in [y]·[x], slope in [y]/[x]. Nothing is normalized to liter or liter per hour as in the NCA, so the parameters, the data and the predicted curve always live on the same scale.

What one row of a fit does, from the data and the model to the result:

flowchart TD
  D["x, y (+ sd)"] --> W["Weighting<br/>NONE | INV_Y | INV_Y2 | INV_SD"]
  M["Model<br/>predict, derived, initial_guess"] --> G["the initial guess<br/>(log-linear regression,<br/>curve stripping, half-way crossing)"]
  W --> R["weighted residuals r_i"]
  G --> SC["search space q<br/>log10 for the positive parameters"]
  SC --> MS["n_starts Latin hypercube starts<br/>around the guess"]
  MS --> LS["scipy.optimize.least_squares<br/>keep the best converged solution"]
  R --> LS
  LS --> COV["covariance from the Jacobian<br/>cov(q) = s^2 (J'J)^-1"]
  COV --> SE["p_se, t intervals,<br/>transformed back to the linear scale"]
  COV --> DEL["derived parameters<br/>delta method, numerical gradient"]
  LS --> BS{"FitOptions.bootstrap?"}
  BS -->|"B > 0"| RB["residual bootstrap<br/>percentile intervals<br/>flag BOOTSTRAP_FALLBACK below 2"]
  BS -->|"0"| SE
  LS --> GOF["r2, rmse, aic, aicc, bic<br/>K = k + 1"]
  SE --> OUT["FitResult"]
  DEL --> OUT
  RB --> OUT
  GOF --> OUT
  OUT --> CM["compare_models<br/>AICc, Akaike weights"]
  OUT --> PT["proportionality_test<br/>the criterion of Smith et al."]

Math¶

Weighted residuals and the objective, with the scipy cost \(\mathrm{cost} = \tfrac12 \sum_i \rho(r_i^2)\) (\(\rho(z) = z\) for loss="linear"):

with \(\tilde y_i = \lvert y_i \rvert\) for a finite non-zero value and \(\tilde y_i = \min_{j:\, y_j \ne 0} \lvert y_j \rvert\) (1 when the row has no such value) for a zero or non-finite one.

Covariance in the search space \(q\) (\(q_j = \log_{10} p_j\) for a positive parameter, \(q_j = p_j\) otherwise), standard errors and intervals of the \(k\) free parameters:

Derived parameters \(d(p)\) by the delta method, with the gradient \(g = \partial d / \partial q\) from central differences:

Goodness of fit with the unweighted residuals \(e_i = y_i - f(x_i; \hat p)\) and the weighted \(\mathrm{RSS} = \sum_i r_i^2\) (which is \(2\,\mathrm{cost}\) for loss="linear"), counting \(K = k + 1\) estimated parameters ²:

\(\mathrm{AICc}\) is NaN when \(n - K - 1 \le 0\). Akaike weights over the candidate models: \(\Delta_i = \mathrm{AICc}_i - \min_j \mathrm{AICc}_j\), \(w_i = e^{-\Delta_i/2} / \sum_j e^{-\Delta_j/2}\).

Residual bootstrap replicate \(b\) of a fit \(\hat p\) ³:

Dose proportionality over the dose range \(r = D_\mathrm{high}/D_\mathrm{low}\) with the acceptance limits \(\theta_L = 0.8\), \(\theta_H = 1.25\) ⁴:

Models¶

The half-life of a rate constant is \(t_{1/2} = \ln 2 / k\), the area of a sum of exponentials \(\sum_i a_i / k_i\), the area of a Bateman curve \(a / k_e\), and \(\mathrm{EC}_{90} = 9^{1/n}\,\mathrm{EC}_{50}\) (\(n = 1\) without a Hill coefficient).

Variables¶

A FitResult is an xarray.Dataset over the sample dimensions of the input, with attrs["units"] on every variable. For every model parameter and every derived parameter p:

Discrete indicators (flip_flop) and the counts carry no uncertainty variables. The _cv variables are fractions (0.12 is a relative standard error of 12 %, the convention of the whole package, which a table formats as a percentage where it prints). Three kinds of variable carry attrs["units"] = "dimensionless" without being dimensionless: rmse carries the unit of y, a weighted residual is dimensionless only under INV_SD (it is the residual divided by the square root of the variance model otherwise), and cost is the sum of the squared weighted residuals and carries \([y]^2\) under NONE. proportionality_test returns a ProportionalityResult with slope, ci_low, ci_high, bounds, proportional, inconclusive, dose_range and criterion, and to_dict.

API¶

One curve:

import numpy as np

from pkpdutils import Bateman, FitOptions, Weighting, fit

# an oral curve with 5 % noise and the standard deviations of the group
rng = np.random.default_rng(0)
t = np.array([0.25, 0.5, 1, 1.5, 2, 3, 4, 6, 8, 12, 24])
c = 5.0 * 1.2 / (1.2 - 0.15) * (np.exp(-0.15 * t) - np.exp(-1.2 * t))
sd = 0.05 * c
c = c * rng.lognormal(0, 0.05, t.size)

result = fit(
    Bateman(),
    t,
    c,
    sd=sd,
    x_unit="hr",
    y_unit="mg/l",
    options=FitOptions(weighting=Weighting.INV_SD, n_starts=5, seed=0),
)
q = result.to_quantities()
for name in ("a", "ka", "ke", "tmax", "cmax", "thalf", "auc"):
    print(f"{name:<6} {q[name]:~P}")
print(f"ka 95 % interval {q['ka_ci_low']:~P} - {q['ka_ci_high']:~P}")
print("r2", round(float(result["r2"]), 4), "| flags", result.flags())
print(result.predict(np.array([0.0, 1.0, 4.0])).round(3))  # the fitted curve

a      5.1233145604293835 mg/l
ka     1.1679414997936728 1/h
ke     0.15360699594336222 1/h
tmax   1.9999326676335676 h
cmax   3.7682019656913637 mg/l
thalf  4.512471429462247 h
auc    33.3533933722553 h⋅mg/l
ka 95 % interval 1.0663803842676483 1/h - 1.2791752052688965 1/h
r2 0.9953 | flags []
[0.    3.225 3.136]

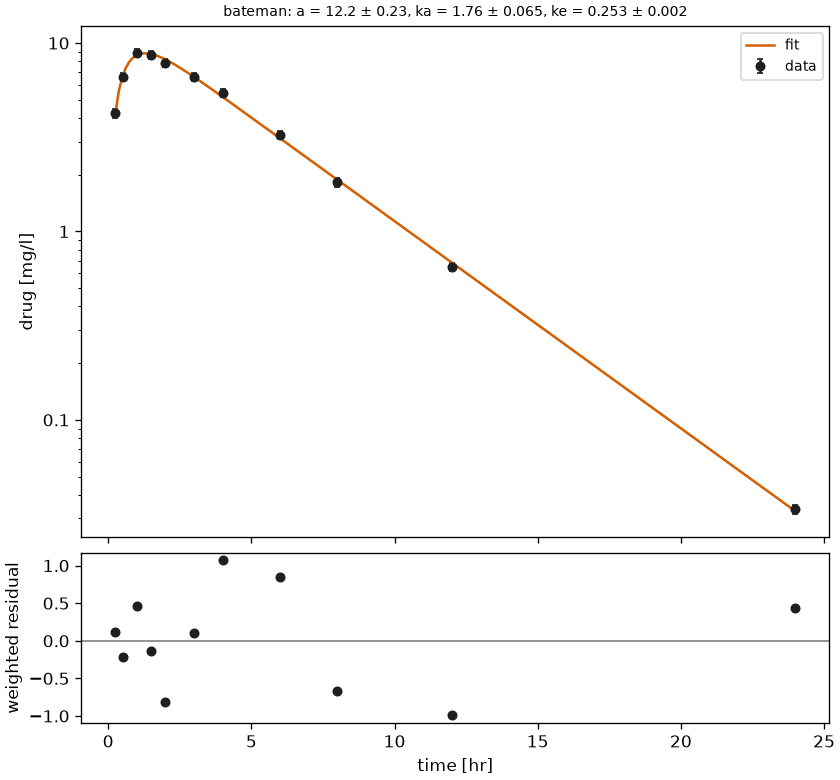

The rate constants come back where the curve was built (1.2 and 0.15 per hour), the parameters carry the raw units of the data, and the derived tmax, cmax, thalf and auc come with their own standard errors and intervals. result.correlation() is the correlation matrix of the parameters, which says how much the fit could trade one against another.

FitOptions also carries fixed, bounds and initial per parameter name, loss, ci_level, bootstrap, n_workers and the scipy tolerances.

A single Timecourse is fitted by fit_timecourse, which takes the times relative to the dose and the units from the curve and returns a result without a sample dimension, so nothing has to be indexed:

# not executed
from pkpdutils import Bateman, FitOptions, fit_timecourse

# `timecourse`: one oral curve, e.g. the `tc` of the Timecourses page
result = fit_timecourse(Bateman(), timecourse, options=FitOptions(n_starts=5, seed=1))
result.to_quantities()["ka"]  # no indexer, the result is one sample

A batch of timecourses is fitted over its sample dimensions, with the times taken relative to the dose and the units taken from the batch:

# not executed
from pkpdutils import BiExp, FitOptions, fit_timecourses

# `batch`: a Timecourses over "individual", e.g. the one of the NCA page
fits = fit_timecourses(BiExp(), batch, options=FitOptions(n_starts=10, seed=1))
fits["k1"]  # DataArray over the sample dims of the batch
fits.to_dataframe()  # one row per sample, flags decoded
fits.summarize("individual")  # mean, sd, se, interval over the individuals

summarize reduces the parameters and the derived parameters over a sample dimension; the goodness of fit and the counts of the single fits (FitResult.statistics) are left out, they describe one fit and are read from the unsummarized result (fits.to_dataframe()).

fit_timecourses passes the sd of the batch to the engine and nothing else, so Weighting.INV_SD on a batch that carries se and n but no sd raises ValueError: Weighting.INV_SD needs 'sd' rather than deriving the standard deviation; give the batch an sd (or use another weighting) in that case.

A parameter against a dose or a covariate is fitted along one dimension of any dataset, the result of another analysis included:

import numpy as np

from pkpdutils import Power, Route, Timecourses, fit_table, nca, proportionality_test
from pkpdutils.fit import proportionality_table

# the exposure of a dose escalation, five dose groups
time = np.array([0.5, 1, 2, 4, 6, 8, 12, 24])
doses = np.array([25.0, 50.0, 100.0, 200.0, 400.0])
rng = np.random.default_rng(4)
values = np.stack(
    [
        d**1.15 / 10 * np.exp(-0.25 * time) * rng.lognormal(0, 0.04, time.size)
        for d in doses
    ]
)
batch = Timecourses.from_arrays(
    time,
    values,
    time_unit="hr",
    unit="mg/l",
    dims=("dose",),
    coords={"dose": doses},
    dose={"amount": doses, "unit": "mg"},
    route=Route.IV_BOLUS,
    substance="drug",
)
result = nca(batch)

# the dose coordinate of an NCAResult carries no unit, the fit needs one
ds = result.ds.assign_coords(dose=("dose", doses, {"units": "mg"}))
power = fit_table(Power(), ds, "dose", "auc_inf_obs", dim="dose")
print(
    power.to_dataframe()
    .T.loc[["a", "b", "b_se", "b_ci_low", "b_ci_high", "r2"]]
    .to_string(header=False)
)

test = proportionality_test(power, dose_range=(25.0, 400.0))
print(test.to_dict())  # the verdict as plain python values
print(proportionality_table(test).to_string(index=False))

a          0.384314
b           1.15642
b_se       0.005503
b_ci_low   1.138906
b_ci_high  1.173933
r2         0.999973
{'slope': 1.15641953119868, 'ci_low': 1.138906039242174, 'ci_high': 1.173933023155186, 'bounds': [0.9195179762781595, 1.0804820237218407], 'proportional': False, 'inconclusive': False, 'dose_range': [25.0, 400.0], 'criterion': [0.8, 1.25]}
slope ci_low ci_high bound_low bound_high dose_low dose_high          verdict
 1.16   1.14    1.17     0.920       1.08     25.0       400 not proportional

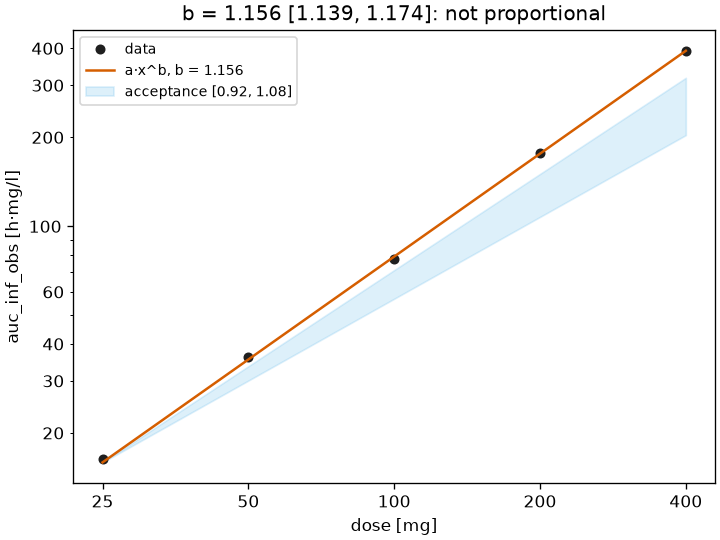

proportionality_table is the table a dose escalation reports: the exponent with its interval, the acceptance bounds the criterion derives from the dose range and the verdict, one row per sample and every number formatted with digits significant digits.

The other two front ends of fit_table and the model comparison, with the t and c of the first snippet of this section and a dataset weights_ds of a clearance per individual with a weight coordinate:

# not executed
from pkpdutils import Allometric, BiExp, MonoExp, compare_models, fit_table

# `weights_ds`: a dataset of a clearance per individual with a `weight`
# coordinate; `t` and `c` are the arrays of the first snippet of this section
allometric = fit_table(
    Allometric(exponent=0.75), weights_ds, "weight", "cl", dim="individual"
)

comparison = compare_models([MonoExp(), BiExp()], t, c, x_unit="hr", y_unit="mg/l")
comparison.table  # one row per sample and model, with delta_aicc and akaike_weight
comparison.best  # name of the best model per sample

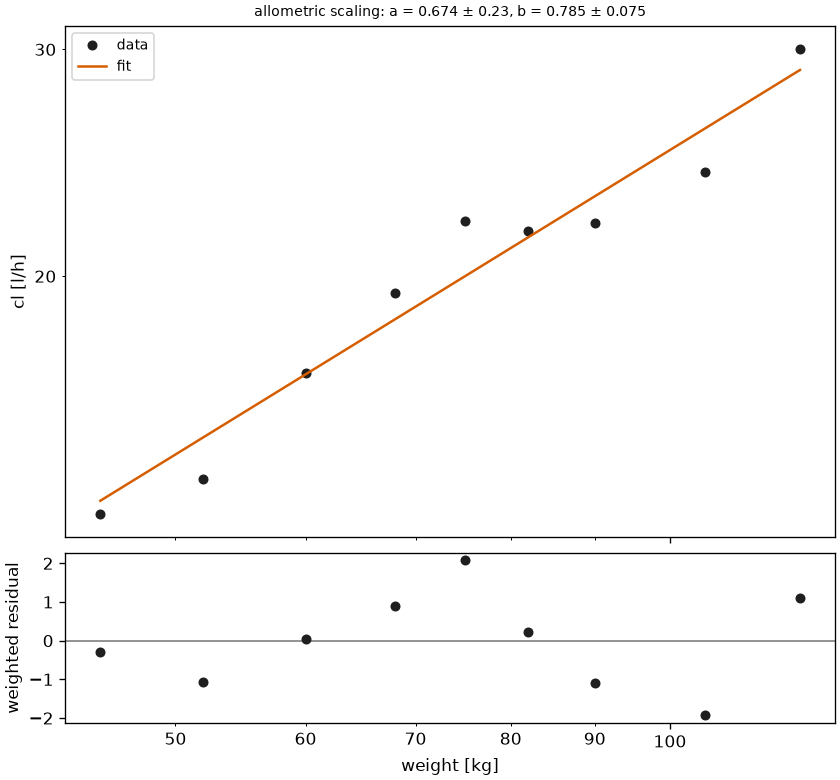

The power model of the dose escalation above (examples/dose_proportionality.py) and the allometric model of a clearance against the body weight (examples/covariate.py):

The units of fit_table come from attrs["units"] of the x and y variables and fall back to dimensionless, so a coordinate without units (the dose of an NCAResult) is best given one before the fit. A sample dimension must not share its name with a variable of the result (a dimension k with a model that has a rate constant k raises a ValueError), and the candidate models of compare_models need distinct names, which Allometric(exponent=0.75) gets as allometric_0.75.

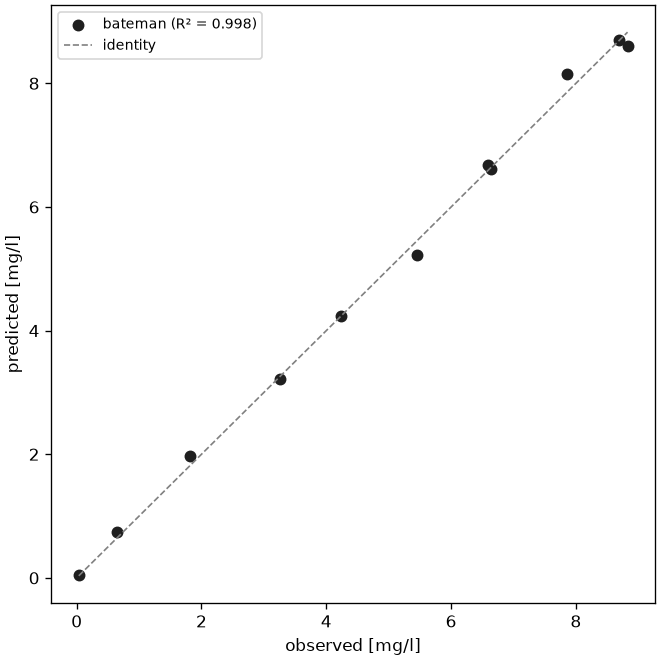

Figures: plot_fit, plot_goodness_of_fit and plot_dose_proportionality, see Plotting. Examples: examples/fitting_exponential.py, examples/emax.py, examples/dose_proportionality.py and examples/covariate.py. The reference of the modules is in API: fit and API: fit.models; the concentration-effect models are described in Pharmacodynamics.
